Camera-based,
non-contact pulse wave
measurement(rPPG)
UNO-BrainBody
Installed Sensor Configuration
Camera-based,
2-channel EEG sensor
for brainwave measurement
PPG sensor
for pulse wave measurement
Key Features of the BrainBody Bilateral Model
1 Min Measurement
Measurements are completed within one minute,
significantly reducing testing and waiting time
Facial recognition
Fast and convenient registration and login through non-contact facial recognition
PPG(Pulse-wave)
Clearly captures heart rate and HRV signals,
providing a stable foundation for analysis
EEG(Brain-wave)
EEG modules can be optionally selected to expand brainwave-based analysis and reporting
Convenient UI/UX and Screen Layout
Provides easy-to-read PPG · EEG graphs
with an intuitive touch-based UI.
Certifyed Medical Device
A Korea-registered Class II medical device, manufactured under GMP standards and in progress for FDA clearance.
GMP Certified
Certified as a Class II medical device by the KFDA,
and designed, manufactured,
and quality-controlled in compliance
with GMP (Good Manufacturing Practice) standards.

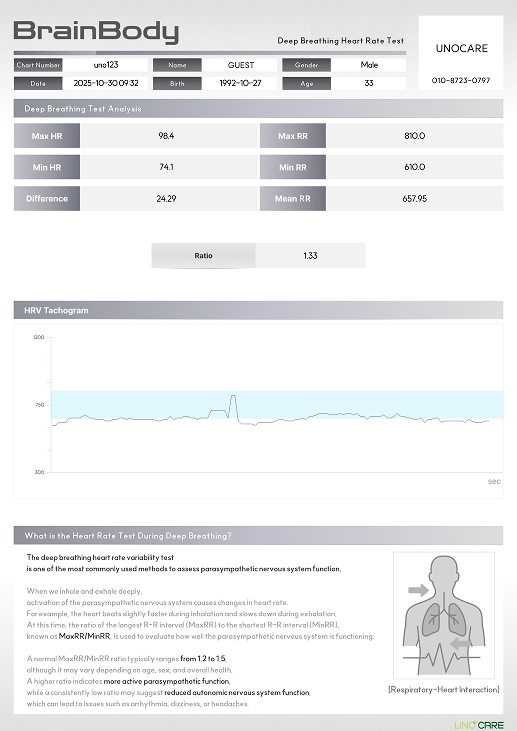

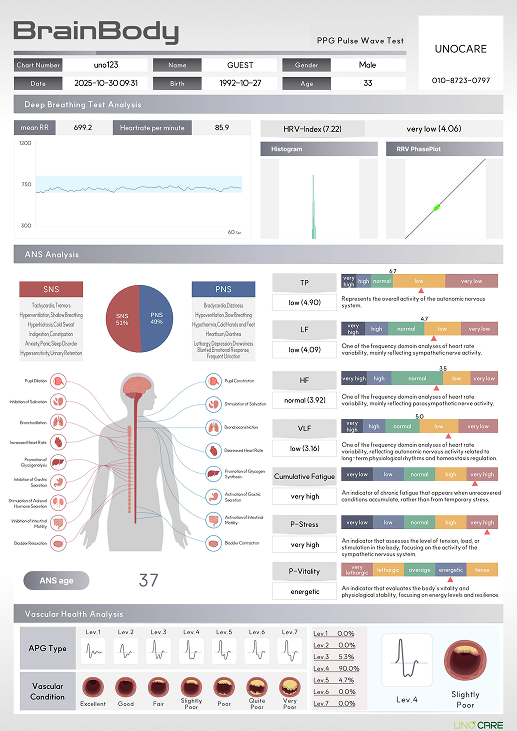

Results at a glance
A results report that enables intuitive review
of key indicators such as stress, fatigue,
and vascular health through graphs and scores.
Specifications
BrainBody Medical Type
| Item | Specifications |
|---|---|
| Pulse Medical Device | 1. Model : UNO-Check (Certificate No. 제인25-4537호) 2. Measurement Method : Optical 3. Measurement Range : 30~200BPM 4. Input Power : 5V, 500mA 5. Interface : Type-C to Type-C or Type-C to Type-USB 6. Dimensions : 159 mm (W) × 195 mm (D) × 47 mm (H) 7. Weight : 300 g 8. Protection Type / Degree : External Power Device, Type B Applied Part |
| EEG Medical Device | 1. Model : MTV-001 (Certificate No. 제인25-4646호) 2. Channels : 2 EEG Channels 3. Electrode Configuration : CH1, CH2, REF, GND 4. Input Noise Level : ≤ 6 μV 5. Input Power : 3.7 Vdc, 95 mAh 6. Dimensions : 31.5 mm × 27.5 mm × 10.1 mm 7. Weight : Approx. 12 g |
| Stand | 1. Form Factor : Stand-type Kiosk 2. Material : EGI 1.0t (white painting) 3. Dimensions : 400 mm (W) × 366 mm (D) × 1250 mm (H) |
| Accessories | 1. Power Cable |
