UNO CARE

UNOCARE kiosk Model (Front View) Image

Installed Sensor Configuration

Camera-based,
non-contact pulse wave
measurement(rPPG)

Camera-based rPPG Sensor

2-channel EEG sensor
for brainwave measurement
Option

2-Channel EEG Sensor

PPG sensor
for pulse wave measurement

PPG Pulse Wave Sensor

1 Min Measurement

Measurements are completed within one minute,
significantly reducing testing and waiting time

Facial recognition

Fast and convenient registration
and login through non-contact facial recognition

PPG(Pulse-wave)

Clearly captures heart rate and HRV signals,
providing a stable foundation for analysis

UNOCARE Kiosk Main Unit Image

Integration with various external devices
Option

Expands data coverage by connecting
with external devices such as blood pressure monitors
and body composition analyzers

EEG(Brain-wave)
Option

EEG modules can be optionally selected
to expand brainwave-based analysis and reporting

Convenient UI/UX and Screen Layout

Provides easy-to-read PPG · EEG graphs
with an intuitive touch-based UI.

GMP Certified

Certified as a Class II medical device by the KFDA,
and designed, manufactured,
and quality-controlled in compliance
with GMP (Good Manufacturing Practice) standards.

  • #GMP
  • #Quality Management System
  • #Stability
  • #Process Validation
GMP Certificate Image
ISO13485 Certificate Image
Certificate Image
Certificate Image
Certificate Image
Certificate Image

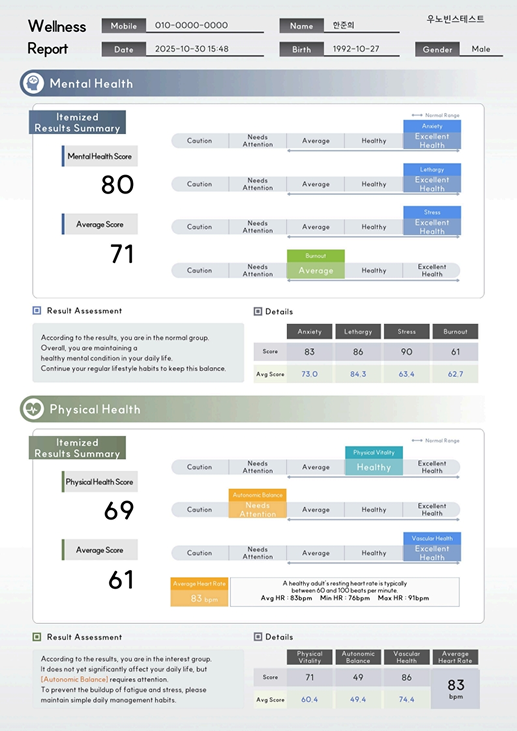

Results at a glance

A results report that enables intuitive review
of key indicators such as stress, fatigue,
and vascular health through graphs and scores.

  • #Results
  • #KeyIndicators
  • #ComparativeAnalysis
  • #IntegratedAnalysis
Result Report Image1
Result Report Image

Specifications

UNOCARE Kiosk Type

Device Type
Stand-type Kiosk
Configuration
PPG(Standard), EEG(Option), Compatible Devices(Option)

This product integrates with a wide range of devices, including blood pressure monitors, glucose meters, and body composition analyzers, and can expand its functionality through additional connections as needed.

GMP Certification Mark for Medical Device Manufacturing and Quality Management Standards
UNOCARE Kiosk Front View ImageUNOCARE Kiosk Side View Diagram Image
ItemSpecifications
Pulse Medical Device1. Model : UNOTHRICE (Certificate No. 제인25-4210호)
2. Measurement Method : Optical
3. Measurement Range : 30~200BPM
4. Input Power : 5V, 500mA
5. Interface : Type-C to Type-C or Type-C to Type-USB
6. Dimensions : 159 mm (W) × 195 mm (D) × 47 mm (H)
7. Weight : 300 g
8. Protection Type / Degree : External Power Device, Type B Applied Part
EEG Medical Device
*Option		1. Model : MTV-001 (Certificate No. 제인25-4646호)
2. Channels : 2 EEG Channels
3. Electrode Configuration : CH1, CH2, REF, GND
4. Input Noise Level : ≤ 6 μV
5. Input Power : 3.7 Vdc, 95 mAh
6. Dimensions : 31.5 mm × 27.5 mm × 10.1 mm
7. Weight : Approx. 12 g
Stand1. Form Factor : Stand-type Kiosk
2. Material : EGI 1.0t (white painting)
3. Dimensions : 400 mm (W) × 366 mm (D) × 1235 mm (H)
Accessories1. Power Cable

Medical Device Advertising Review No.: 조합-2026-13-018 (Valid until : 2029-05-11)
This product is a medical device. Please read the precautions and instructions for use carefully before use.
